Capability
Patterning
Make/Model

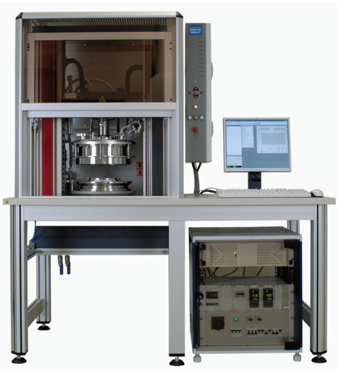

Jenoptic HEX01 Nanoimprinter
Purpose
Embossing microscale features in polymers
Notes
Download Standard Operating Procedures (.pdf)
- In-house ability to make masters
- Double transfer processes enable both protruding and recessed features
- 150mm embossing area
- 20mm stack thickness (max)
- 50 kN force (max)
- 320 C embossing temperature (max)
- UV exposure capability
Hourly Rates
OSU / Non-OSU: $47 / $94
Training
See trainer and contact information on the ATAMI Capabilities Training Staff page.
